Features

Installation and Commissioning Icon

Versatility

A wide choice of coils, versatile hydraulic connections, multiple air delivery versions, and a range of sizes to fit every need. The unit can be installed in the technical corridor or directly in the room to ensure maximum flexibility.

Click to see more
Pencil and ruler design icon

Design

Engineered to make the unit exceptionally easy to customize for any specific requirement.

Click to see more
Tick icon

Integration

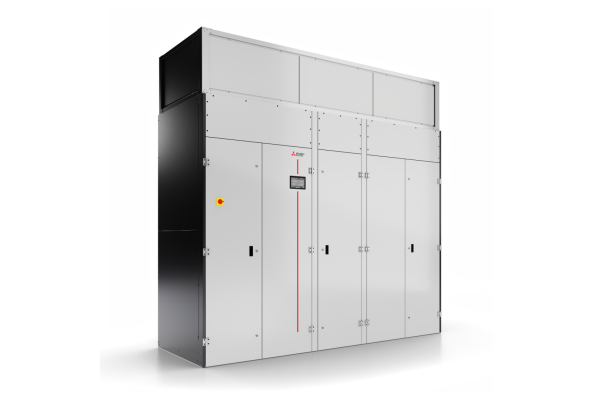

The W-MEXT-XL chilled water air conditioner is the perfect match for Mitsubishi Electric Free Cooling Chillers, delivering efficiency, reliability, and seamless integration.

Click to see more
Highly Efficient Energy Icon

Efficiency

High-performance cooling designed for IT excellence ensuring maximum uptime, energy savings, and seamless operation.

Click to see more

DESIGNED FOR EFFICIENCY. BUILT FOR IT COOLING.

High Efficiency Filters
Advanced Filtration for Maximum Operational Efficiency Thanks to their ePM10 50% rating, the new filters offer a higher level of treatment and purification than traditional COARSE 60% filters, ensuring more effective protection of IT equipment and better air quality. But the innovations don't stop there: the use of micro-pleating technology keeps pressure drops lower, improving the overall efficiency of the unit. This means lower energy consumption and greater operational sustainability.


Chilled Water Coil
Equipped with chilled water coil with copper tubes and high efficiency aluminum fins, this unit features a state-of-the-art fan
section with the latest generation of EC plug fans.The flexibility to fit different types of fans, the chance to select between different coil depending on the design of the hydraulic circuit and the room conditions, and the clean and compact frame design complete a solution designed to stand out in every aspect.

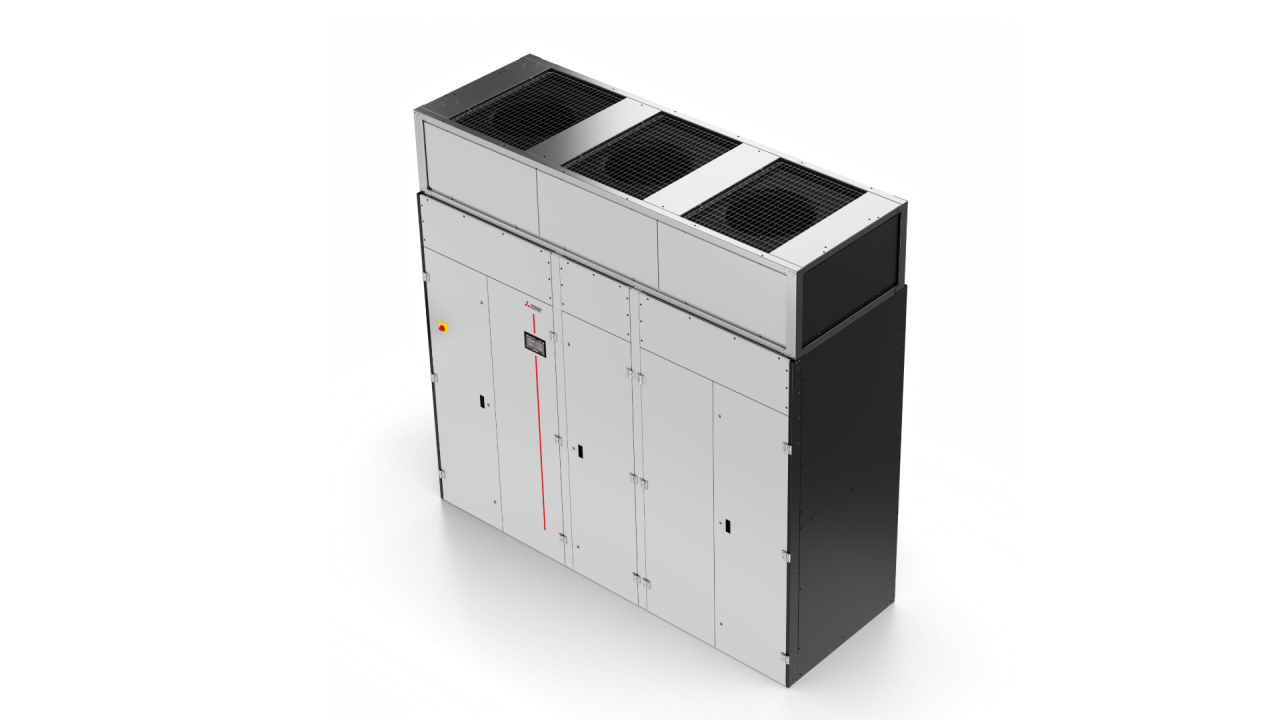

w MEXT XL above

Fan Section
Latest generation EC fans that guarantee high efficiency and airflow up to 70.000m³/h. In addition, there are available the fans
with embedded active harmonic filters to reduce the Harmonic distorption.


Smart Control with Evolution+
The unit is managed by our Evolution+ controller, equipped with a microprocessor and an interface with an intuitive graphic display. This technology allows for complete, real-time monitoring of operating states and alarms, ensuring maximum usability and total control. Furthermore, thanks to integrated LAN connectivity, the unit is ready for integration into remote supervision and management systems, offering uncompromising operational efficiency and responsiveness.

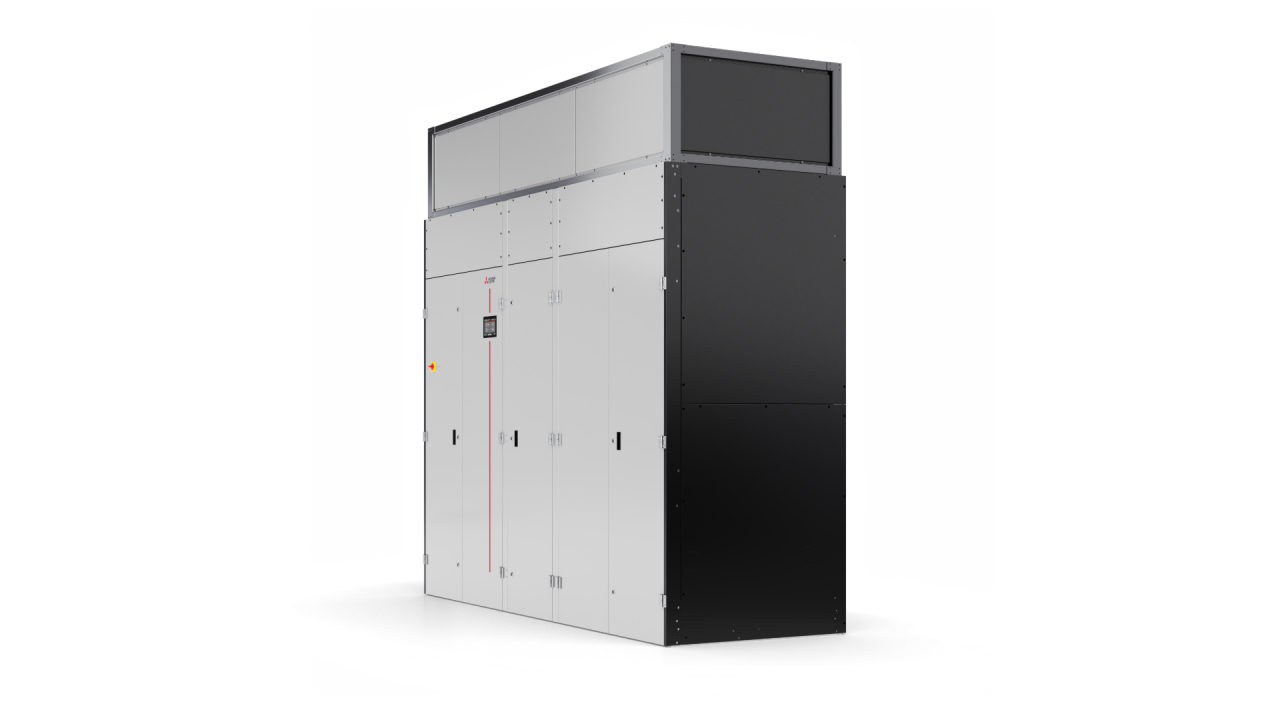

w MEXT XL side
