Features

Tick icon

LOW GWP REFRIGERANT

The pure refrigerant R32 is an extraordinary eco-sustainable alternative to traditional refrigerant R410A, offering a 66% reduction in terms of GWP, a higher efficiency and a lower refrigerant charge.

Click to see more
Tick icon

SYSTEM EFFICIENCY

The unit has been designed as a plug & play system and all components are regulated using proprietary control logic for the utmost efficiency.

Click to see more
Tick icon

HIGH EFFICIENCY AT PARTIAL LOADS

High seasonal efficiency, thanks to the use of main components with inverter technology: variable speed (inverter driven) twin rotary or scroll compressors, EC fans, variable flow EC pumps. All these components grant the unit to deliver the exact amount of energy based on the actual needs of the building. High efficiency for low energy consumption during operating period.

Click to see more
Tick icon

WIDE OPERATING RANGE

Wide operating range, allowing the production of hot water up to 60°C (space heating and DHW) and the functioning with outdoor air temperature down to -20°C.

Click to see more
Tick icon

INTEGRATED HYDRONIC MODULE

The integrated hydronic module includes all the water circuit components (anti-freeze electrical heater on plate heat exchanger, air vents, flow switch, water filter, safety valve, EC water pumps, expansion tank) which optimizes installation space, time, and costs.

Click to see more

Product Information Sheets

MEHP-iB PI Sheet

View & Download

Outdoor unit for the production of hot and chilled water, equipped with variable-speed (inverter-driven) twin rotary or scroll compressors optimized for R32 refrigerant in a single-circuit configuration.

  • The unit features a source-side heat exchanger with copper tubes and aluminum fins, a plate heat exchanger on the user side, an electronic expansion valve (standard), and axial-flow variable-speed fans with EC motors.



  • An integrated hydronic module includes a variable-flow pump with an EC motor.
    This flexible and reliable unit easily adapts to different thermal load conditions thanks to precise temperature control and inverter technology.

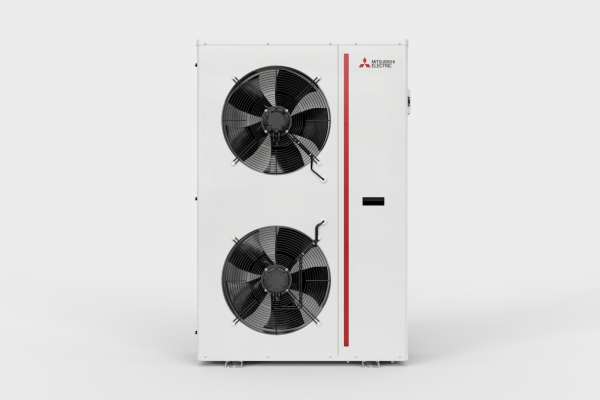

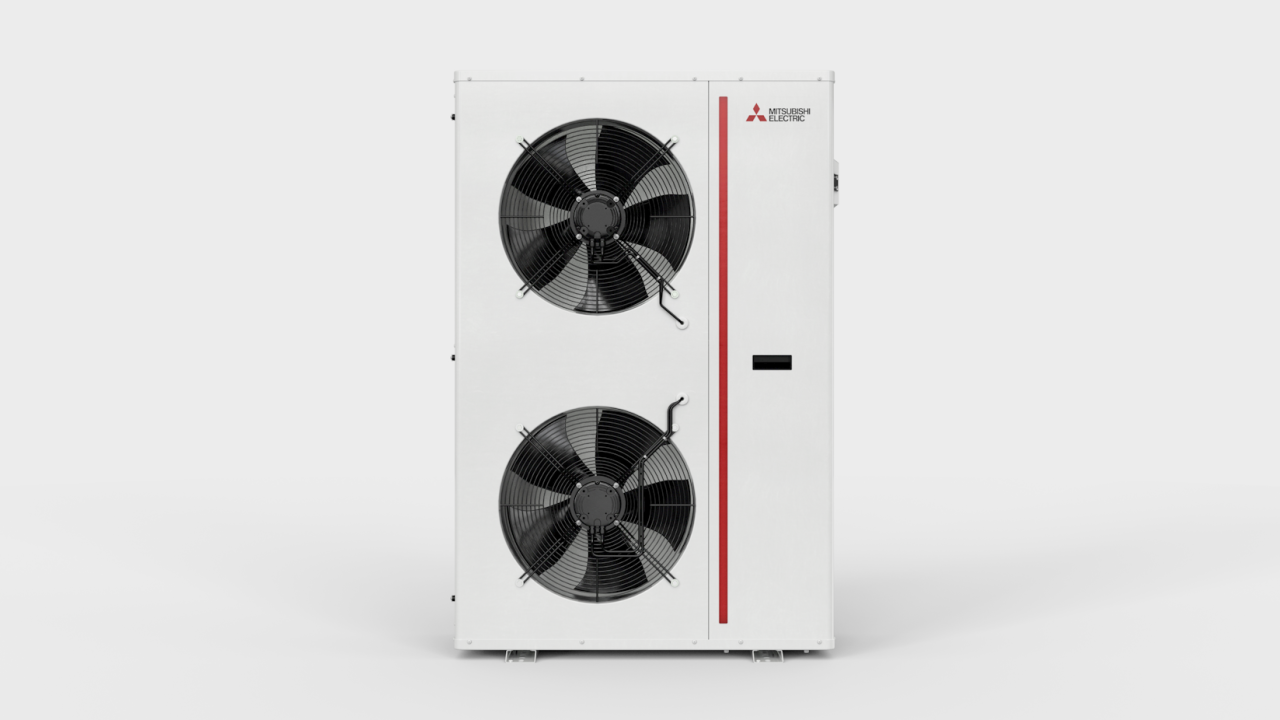

ME MEHP iB G07 BTZ915 front view
  • High performance levels, both at full and partial load, are achieved through accurate unit design and the use of variable-speed (inverter) motors.
    The units provide heating, cooling, and domestic hot water production.



  • Each unit is supplied fully charged with refrigerant and factory tested. On-site installation requires only power and hydraulic connections.

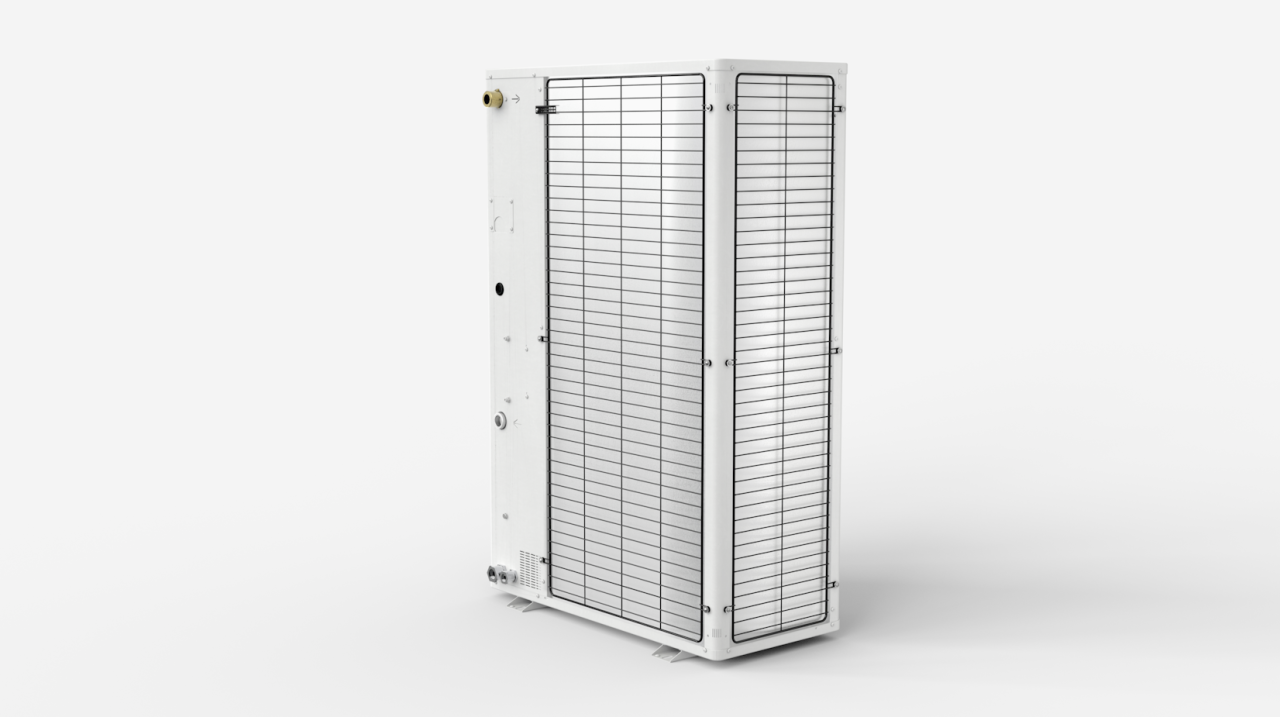

ME MEHP iB G07 BTZ915 back view
