Background:

Spaces Offices provides fully furnished, serviced office environments for individuals and teams across three locations in Dublin. The team at Spaces understood the importance of maintaining a comfortable and fresh atmosphere for employee well-being and productivity, but also recognised the need to reduce their environmental impact and support decarbonisation efforts.

When the time came to upgrade the heating and cooling system in their South Docklands location, Spaces sought a more energy-efficient, sustainable and decarbonised solution. The building had previously relied on a gas boiler and chillers to regulate temperature in communal workspaces, but this system no longer aligned with their sustainability goals. Furthermore, traditional air conditioning systems often create cold air draughts and inconsistent temperature control, leading to discomfort, while the high use of refrigerants in conventional systems poses environmental concerns.

To address these issues, Spaces Offices implemented a Hybrid Variable Refrigerant Flow (HVRF) air conditioning system. This innovative solution not only enhances comfort by providing stable and efficient air conditioning but also supports the company’s commitment to reducing its carbon footprint and embracing more sustainable building operations.

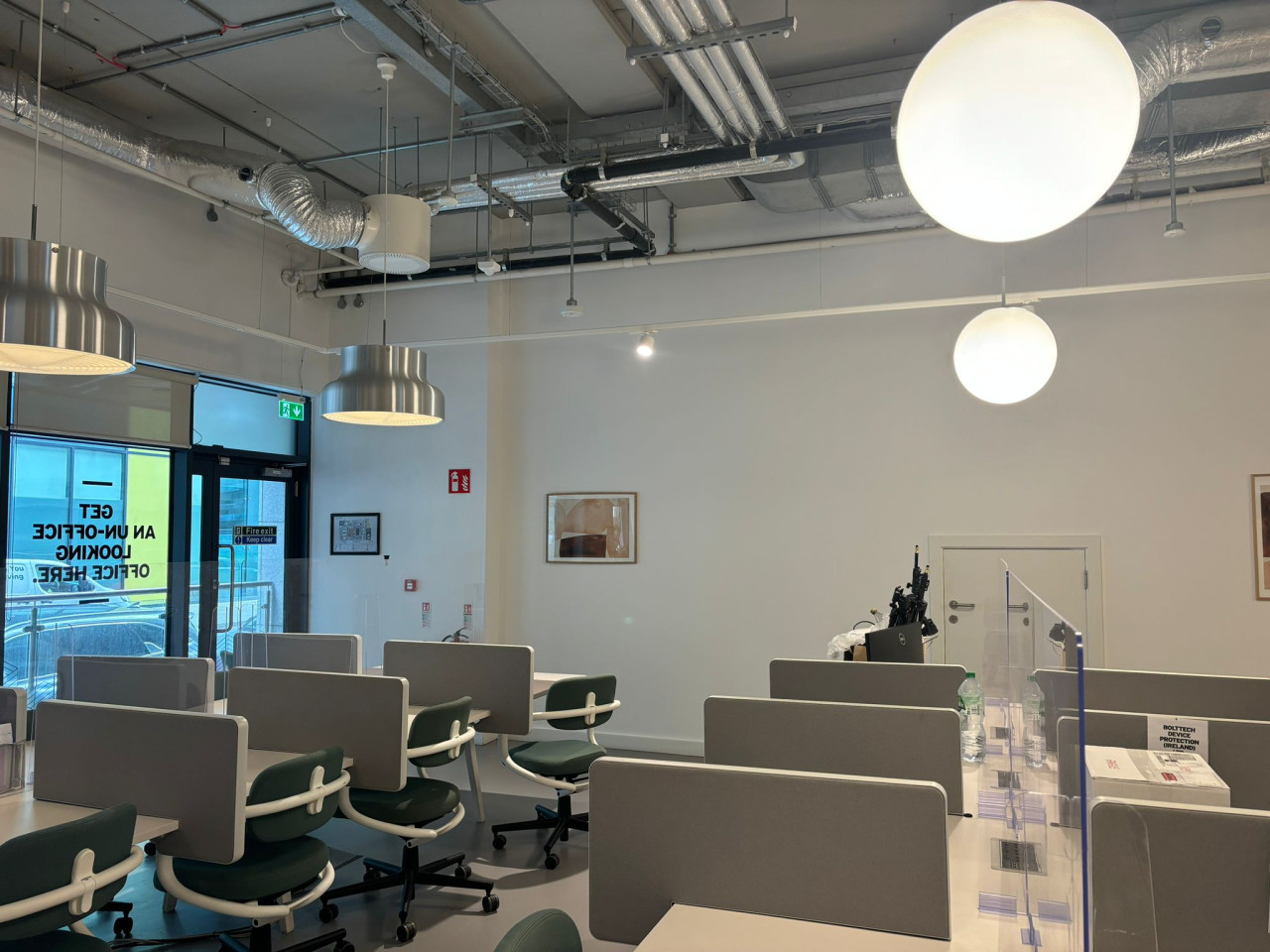

SPACES Office 2

Challenge:

  1. Decarbonise the building: The building previously relied on a gas boiler and two chillers to heat and cool the building. The goal was to replace this system with a renewable, fossil-free energy source to both heat and cool the space, contributing to the building’s decarbonisation and transition to a more sustainable, cleaner energy solution.
  2. Install on a phased basis: It was essential to the Spaces team that their five floor building remained operational during the retrofit and cause the minimum amount of disruption possible to the clientele.
  3. No cold air drafts: The new system needed to provide gradual room temperature adjustments without causing discomfort from cold air drafts while maintaining stable air temperature control to enhance workplace comfort and productivity.
  4. Offer the flexibility to simultaneously heat and cool in different office zones: Additionally, the solution had to be able to heat and cool the different areas in the building simultaneously.

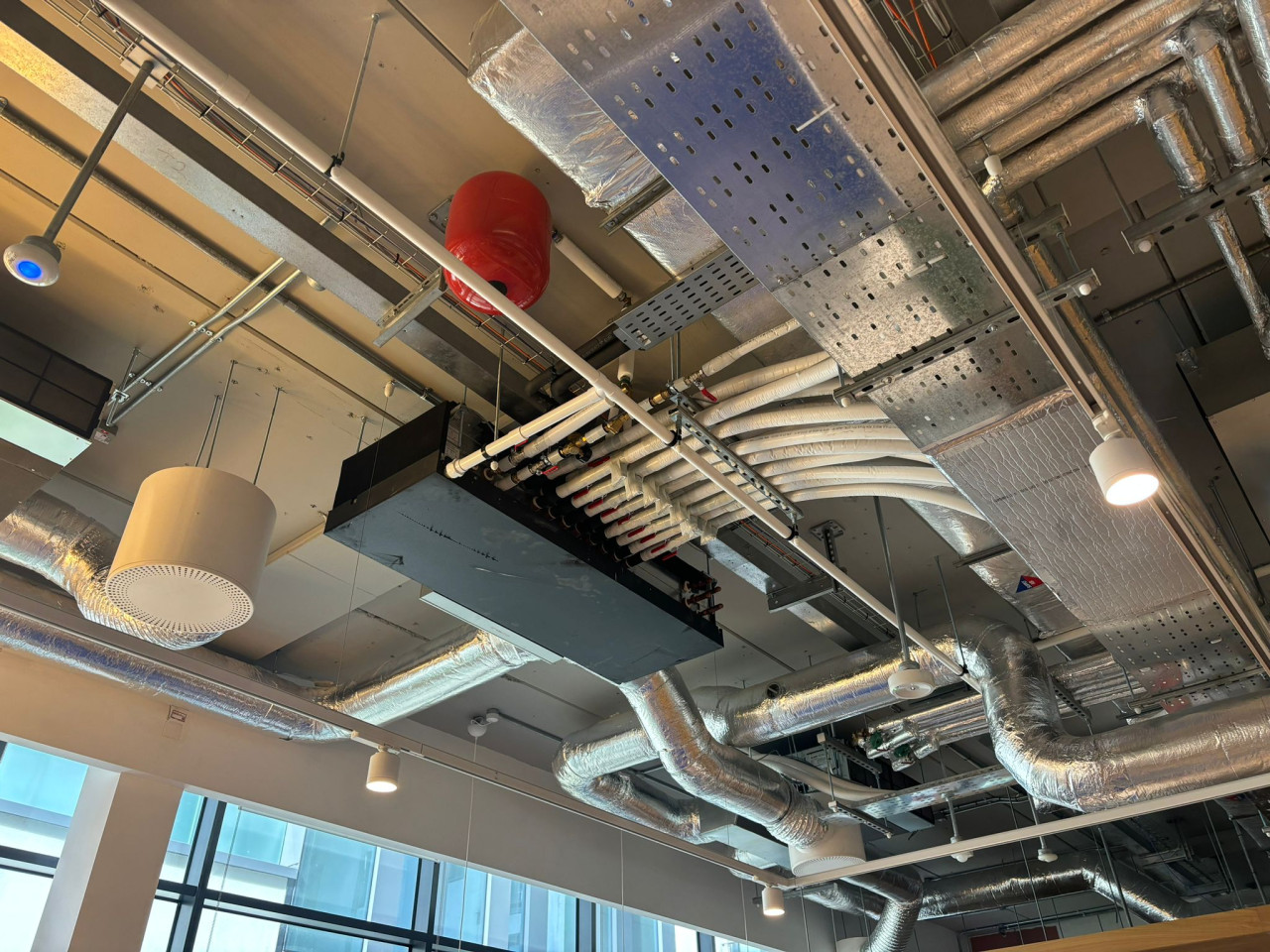

SPACES HBC

Solution:

The team in Spaces hired Crystal Air to be the lead contractors in this decarbonisation project. Working with SEHA Technical Services as consulting engineers, Crystal Air have the ability to install, and service all types of air-conditioning and indoor weather control systems. Preforming not only to their own high standards but also setting a standard within the industry. With their attention to detail, they were confident that they would meet all the client’s requirements in full.

Decarbonise the building:

As Spaces wanted to reduce their carbon footprint with a more sustainable technology, the solution was simple; completely remove the gas boiler and chillers previously used and fit the office with a Mitsubishi Electric Hybrid Variable Refrigerant Flow system. Our HVRF technology was installed to meet these carbon reducing challenges effectively.

Unlike traditional air conditioning systems, HVRF technology primarily uses water for temperature regulation, significantly reducing refrigerant consumption. This innovative air conditioning system is unique to Mitsubishi Electric, whereby the outdoor unit is connected with a 2-pipe heat recovery VRF system and water is used between the Hybrid Branch Controller (HBC) and indoor units - instead of refrigerant. With water pipework connecting the indoor units, HVRF provides comfortable and stable air temperature control with no refrigerant in occupied spaces, thus removing the need for leak detection.

Reducing the environmental impact was a priority to Spaces and this was achieved by minimising refrigerant used in the system. HVRF is the ideal solution for end users that want to future-proof the air conditioning in their building while staying in line with the next stage of the F-Gas Regulations and the phase down of high Global Warming Potential (GWP) refrigerants.

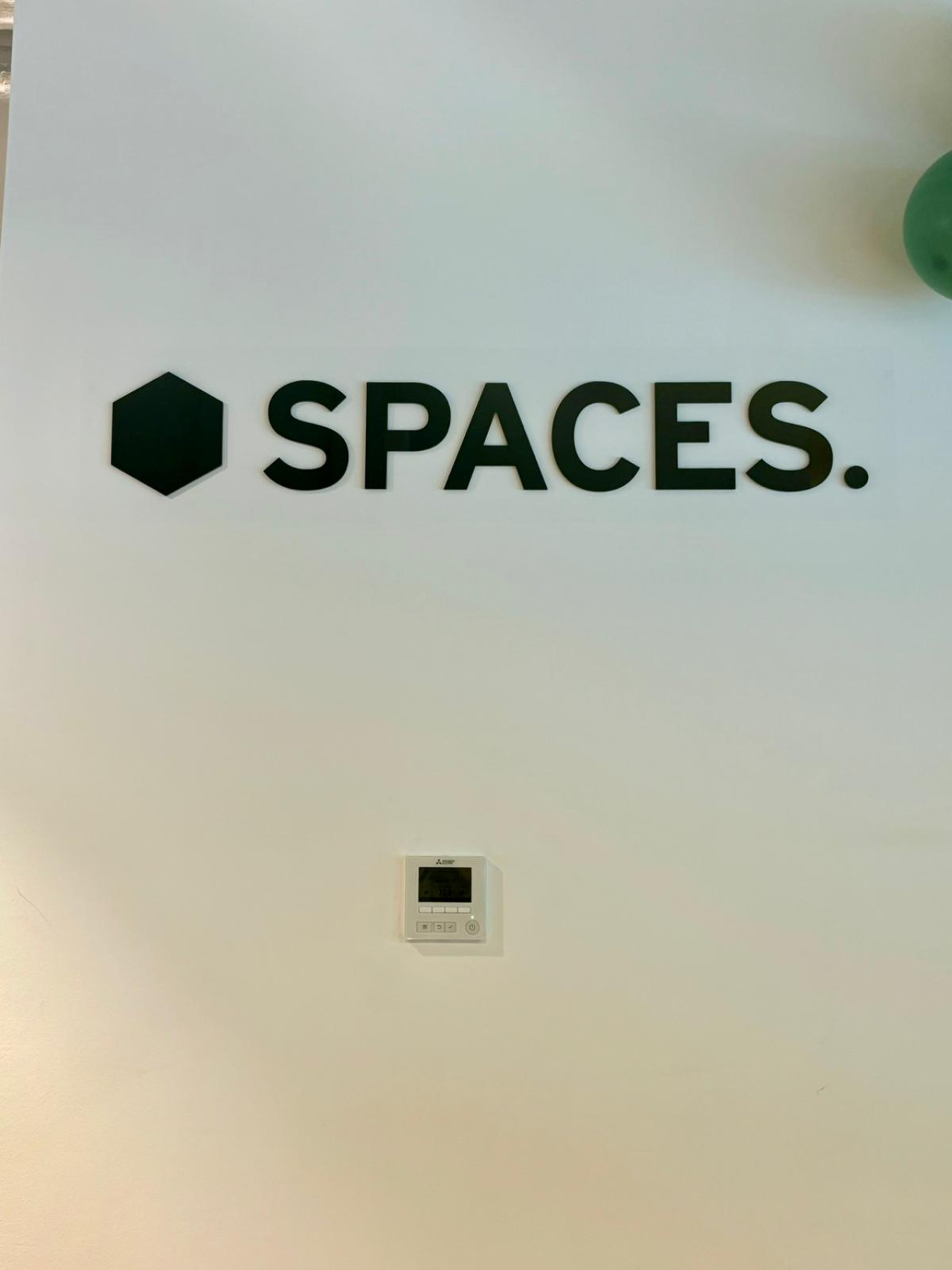

SPACES Control

Install on a phased basis:

As HVRF is a decentralised system, making phased installation possible, Crystal Air were able to accommodate the requirement set by Spaces to install on a phased basis, going floor by floor over the 6-month renovation period. Those utilising the workspace were able to do so on any of the other 4 operational floors with minimal disruption. By working on a phased basis, Crystal Air reduced the business’ downtime compared to shutting down the entire building for renovations.

No cold air drafts:

Due to the nature of HVRF having water pipework connecting the air conditioning units, the system ensures stable, gradual and comfortable temperature adjustments without sudden cold air drafts.

Offer the flexibility to simultaneously heat and cool in different office zones:

HVRF has been specifically designed for occupied spaces where quiet, energy efficient, simultaneous heating and cooling is a necessity. It is a quick, easy and flexible system to design and install using the same control and network as traditional VRF systems. It is the integrated modern heating and cooling solution needed for office buildings

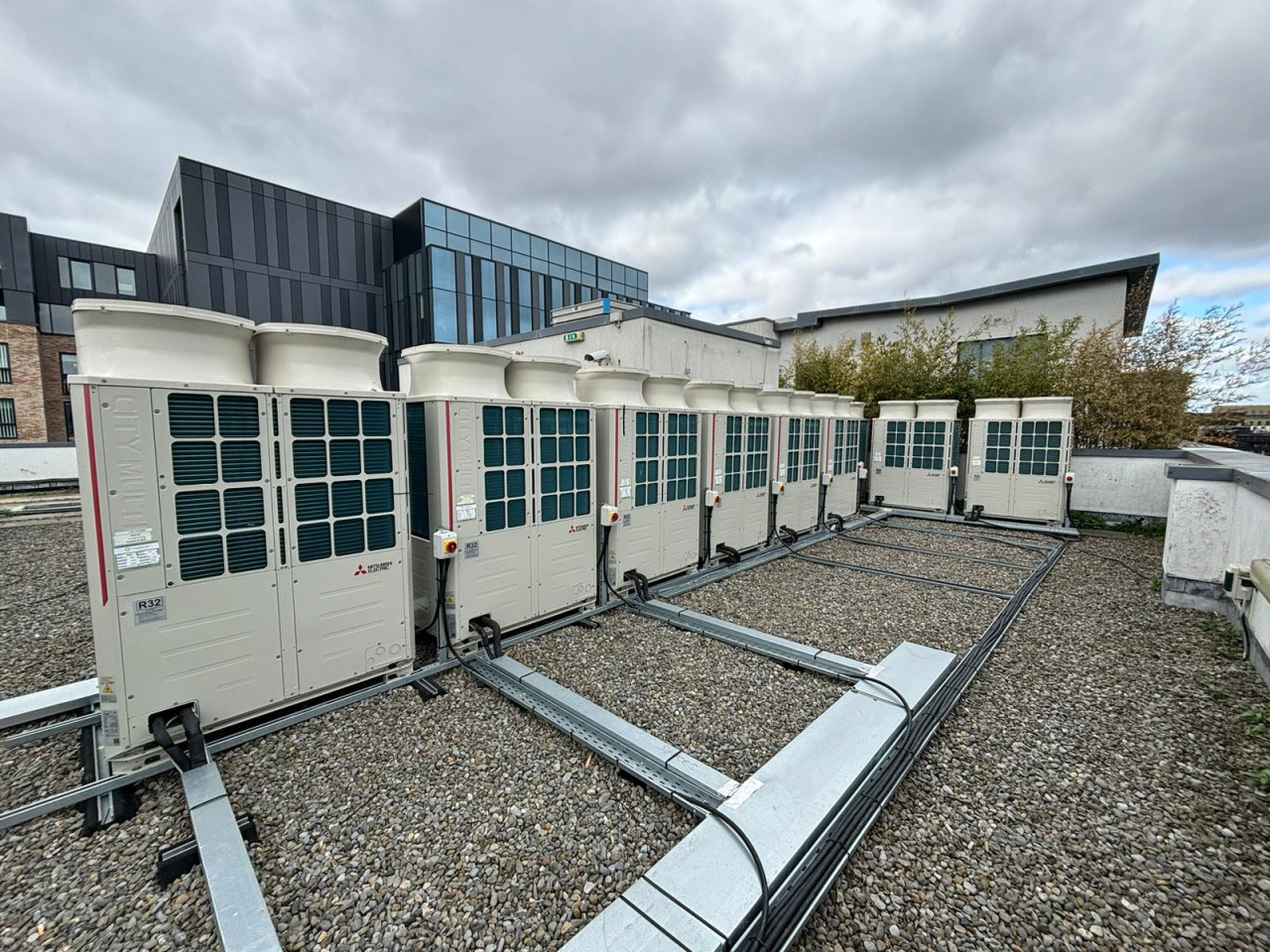

SPACES Roof 2

Results:

The transition from a gas boiler and chiller system to HVRF will deliver a return on investment due to its exceptional energy efficiency. One of the key advantages of the HVRF system is its use of Low GWP R32 refrigerant, which significantly reduces environmental impact. Additionally, since there is no refrigerant in occupied spaces, the need for costly leak detection and annual servicing has been eliminated.

By reducing the overall refrigerant volume, the client successfully lowered their embodied carbon footprint while maintaining compliance with F-Gas phasedown regulations. The HVRF system has also enhanced Spaces’ clientele’s comfort by providing higher air-off temperatures in cooling mode compared to standard VRF, ensuring a more stable indoor climate. Spaces can simultaneously heat and cool from a single system, optimising energy use and operational efficiency.

Unlike fossil fuel-based heating solutions, HVRF leverages more sustainable energy sources, reducing environmental impact through efficient water-based temperature control. The system also provides higher efficiency, extended pipe runs for greater installation flexibility and a simplified two-pipe design for ease of use and maintenance. With whisper-quiet operation, the system ensures a comfortable indoor environment while delivering cost savings and operational benefits.

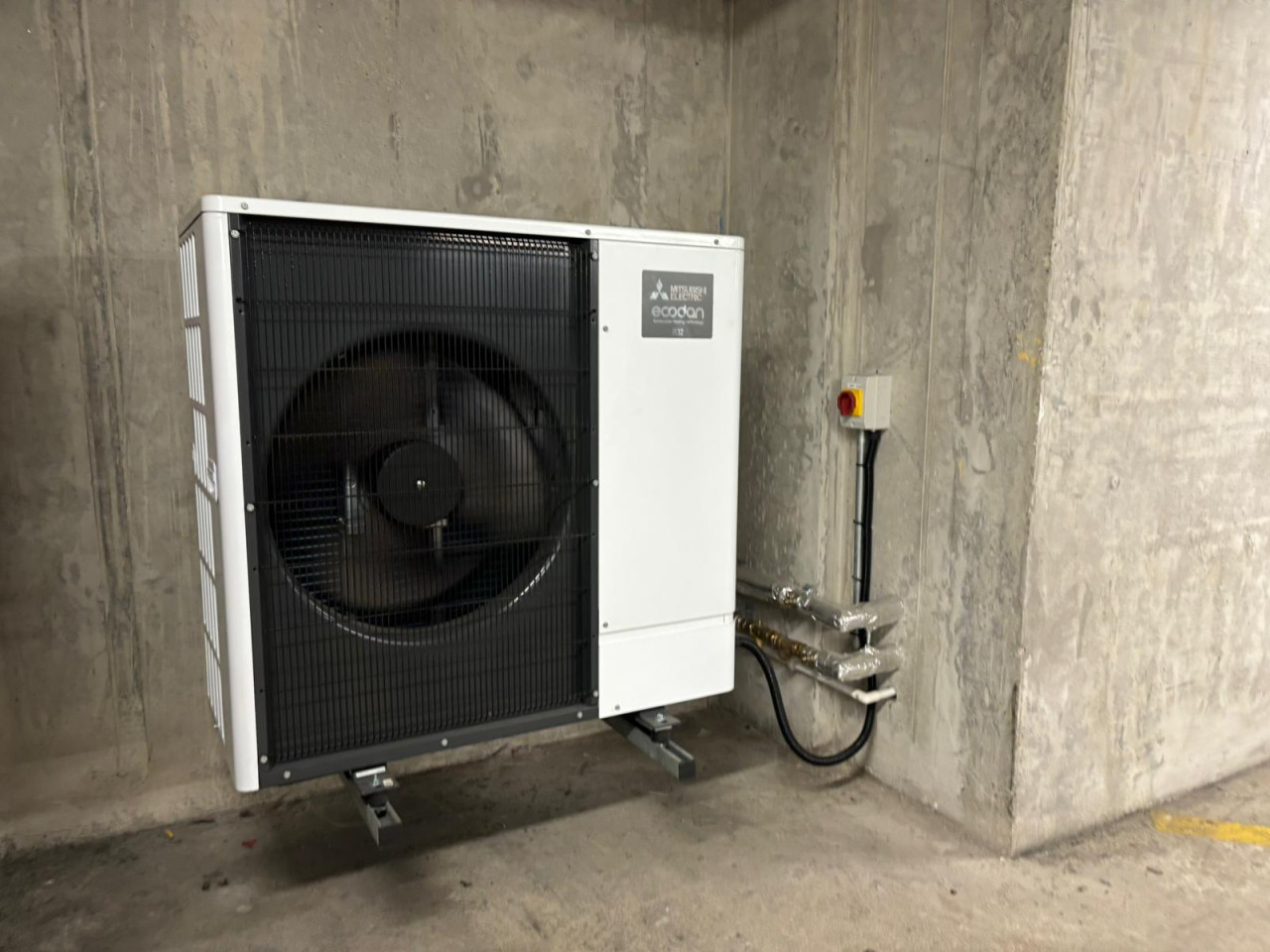

SPACES Ecodan

HVRF delivers a balance of energy efficiency and precise temperature control combined with a system that’s easily designed and installed. Our unique technology provides sustainable, decarbonised comfort that reduces overall costs

Margaret Rafter,
Consultant Sales Engineer, ,
Mitsubishi Electric Ireland

As an installer, I have the confidence in Mitsubishi Electric’s products. I can confidently recommend the HVRF system for its ease of installation, reliability and ability to provide optimal comfort and energy efficiency. It was our first choice for this decarbonisation project and we are delighted with the results

Don Hoban,
Chief Commercial Officer, ,
Crystal Air

Conclusion:

The implementation of a Mitsubishi Electric HVRF Air Conditioning System by Crystal Air has successfully addressed Spaces need for an energy-efficient, comfortable and environmentally responsible AC solution. They have been able to decarbonise their heating and cooling system

By minimising refrigerant use and providing precise temperature management, the system ensures long-term benefits in sustainability, employee well-being and operational efficiency.

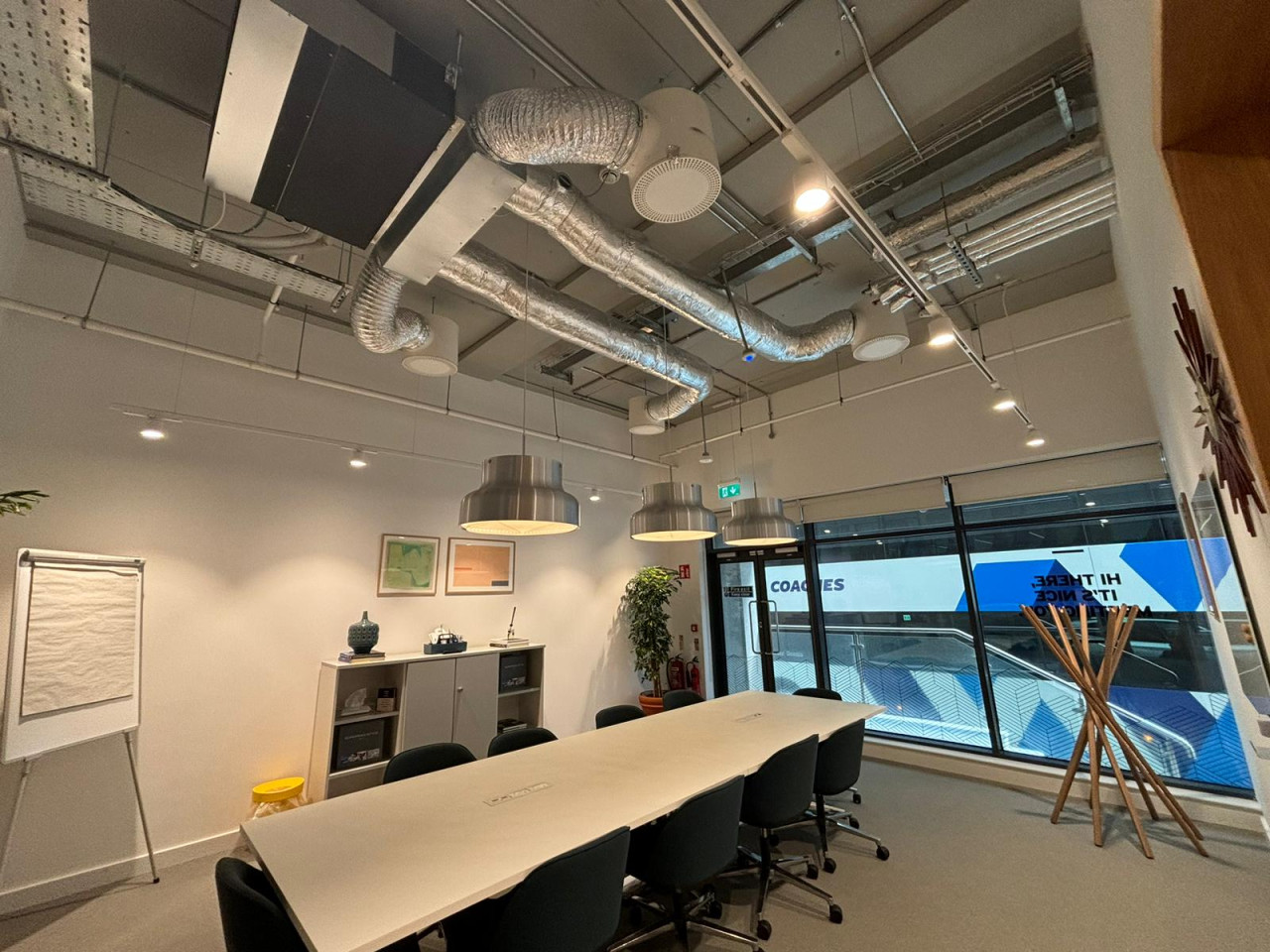

SPACES Office
